Installation

Effective, compact & super easy to install

Our water-softening systems can be installed with a simple DIY process, or be fitted by any trusted plumber within 30 minutes. Here is a detailed breakdown of the installation of our top solutions.

Aqua Shower Premium Bathroom & Home Series Installation guides

DIY · under 5 minutes

Aqua Shower Premium

Aqua Shower Premium (ASP912) is the ultimate compact hard water solution by Aqua Conditioners, designed for individual shower heads, handhelds and taps. Installing it in your shower is a straightforward do-it-yourself job.

Things you need to install

Aqua Shower Premium (ASP912)
Teflon tape, to wrap the pipe threads and prevent leakage

Installing Aqua Shower Premium in your showers (DIY)

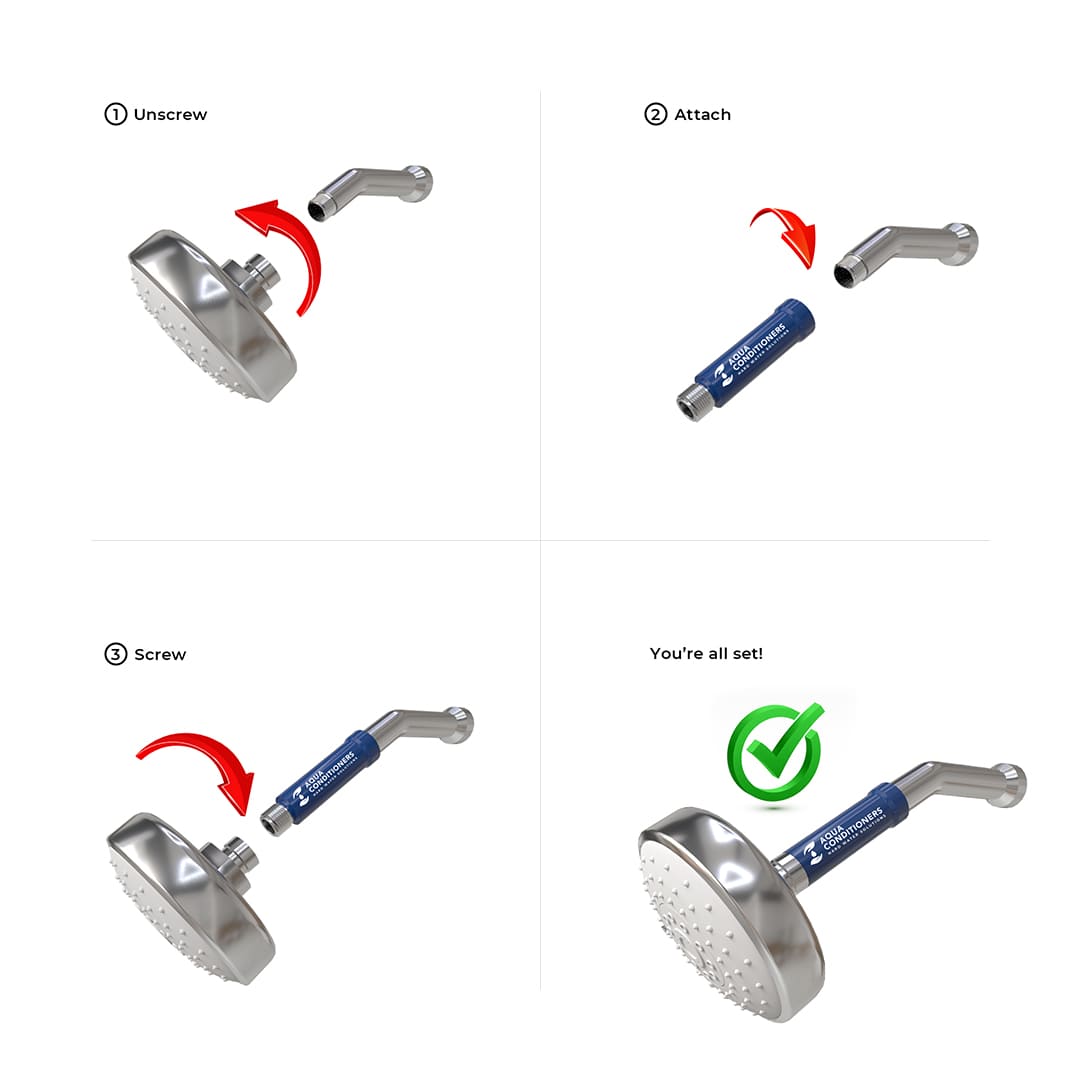

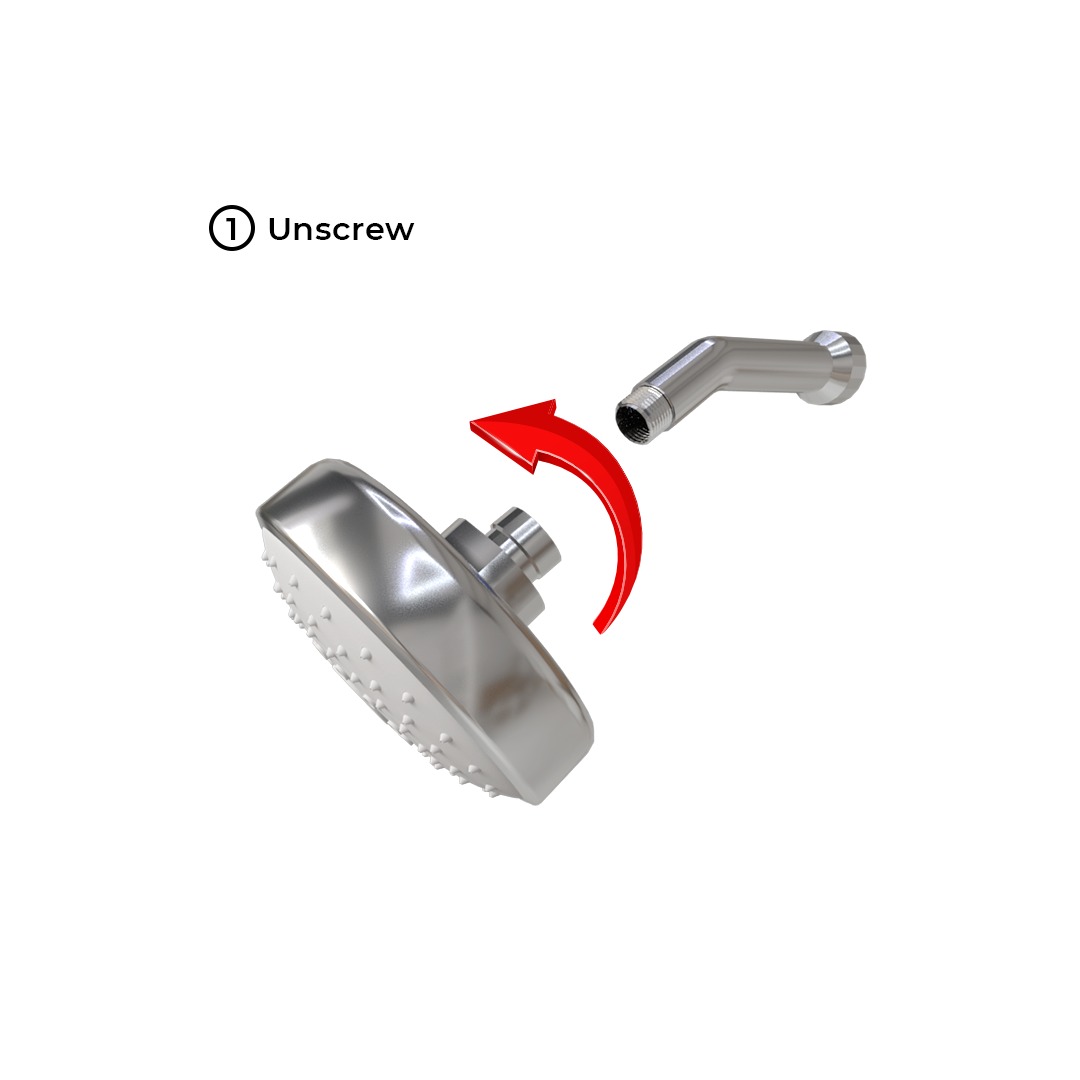

Step 1: the shower head being unscrewed and lifted away from the threaded shower arm

Step 1: Unscrew

Unscrew the shower head from the shower arm and make sure it is wiped clean.

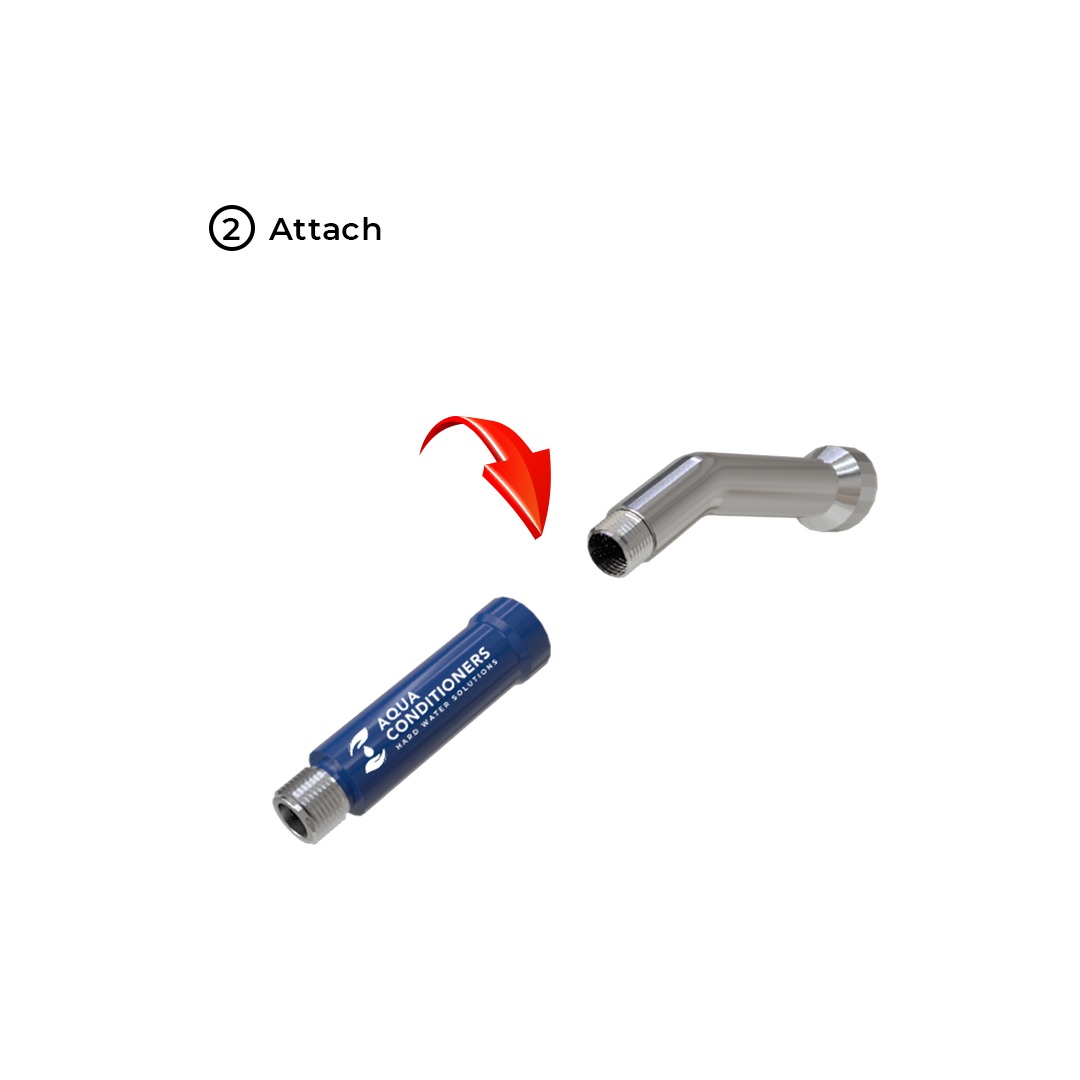

Step 2: the blue Aqua Shower Premium conditioner being screwed onto the bare shower arm

Step 2: Attach

Use Teflon tape to wrap the threads on the shower arm (to avoid leakage). Attach Aqua Shower Premium to the shower arm.

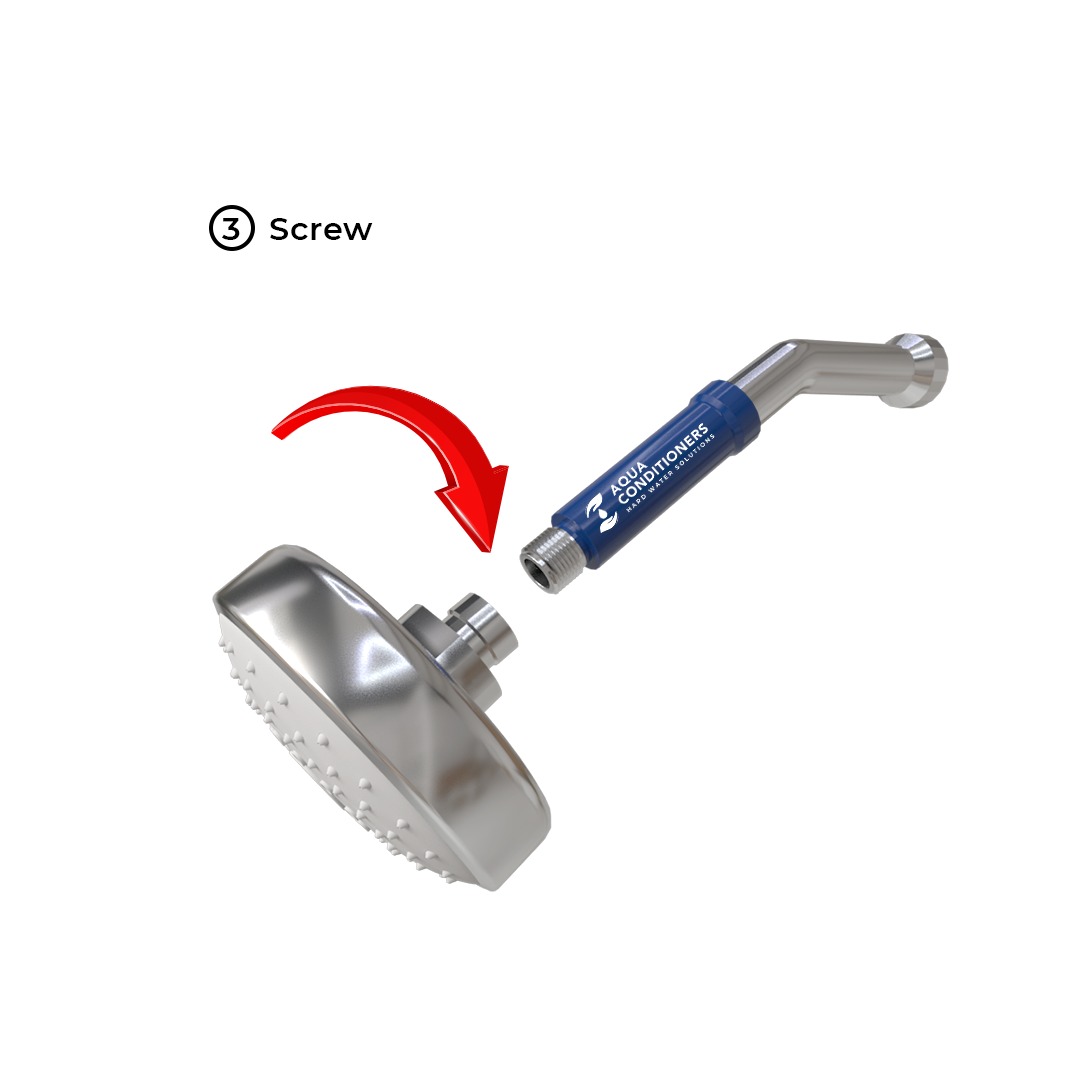

Step 3: the shower head going back on, this time onto the free end of the Aqua Shower Premium

Step 3: Screw

Wrap Teflon tape on the threads of Aqua Shower Premium (ASP). Screw the shower head back onto Aqua Shower Premium and tighten it.

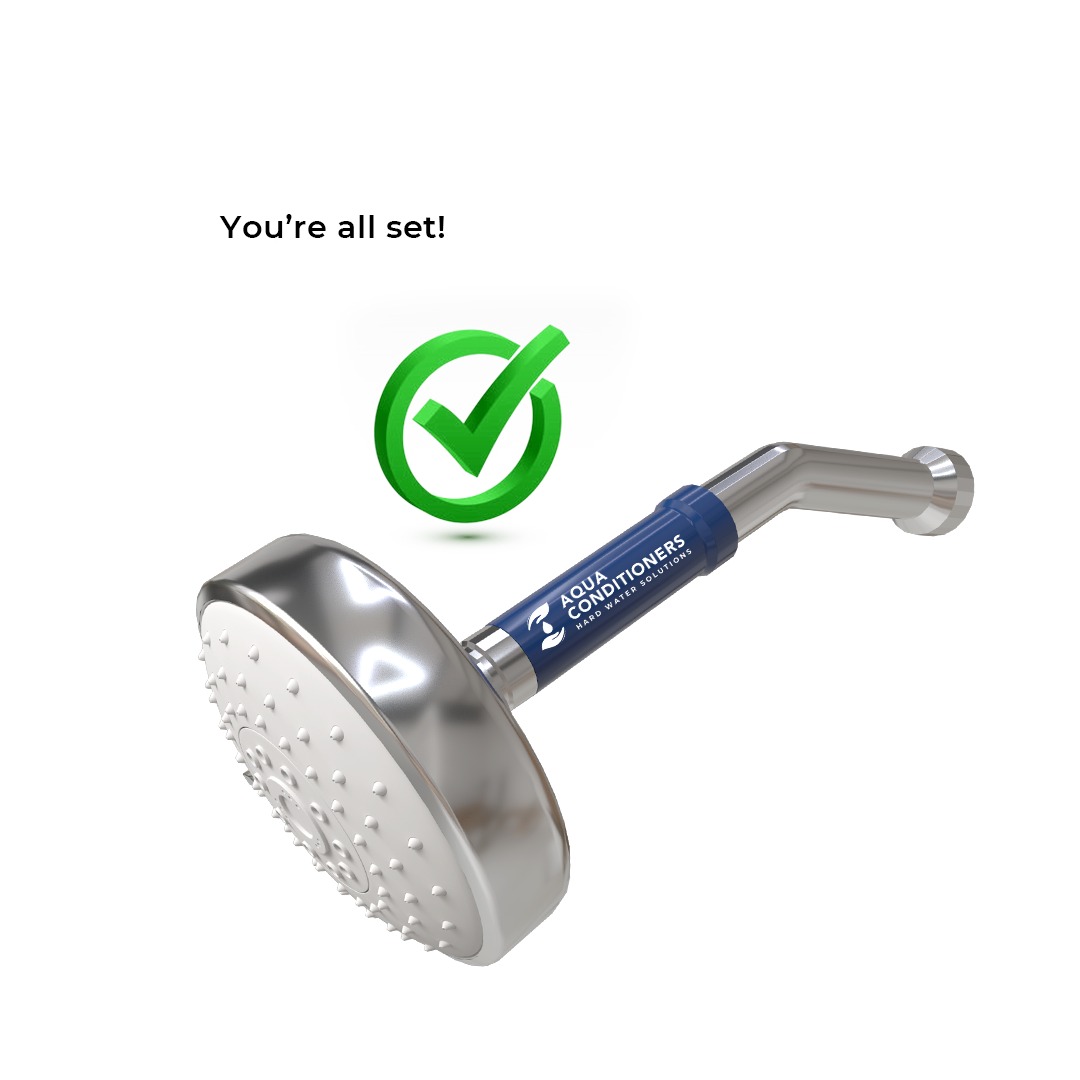

The finished fit: shower arm, Aqua Shower Premium and shower head joined in one line, with a green tick above

✓

Step 4: Done!

Make sure there are no leaks. And you're all set! Your Aqua Conditioners system is ready to make your water and your life better.

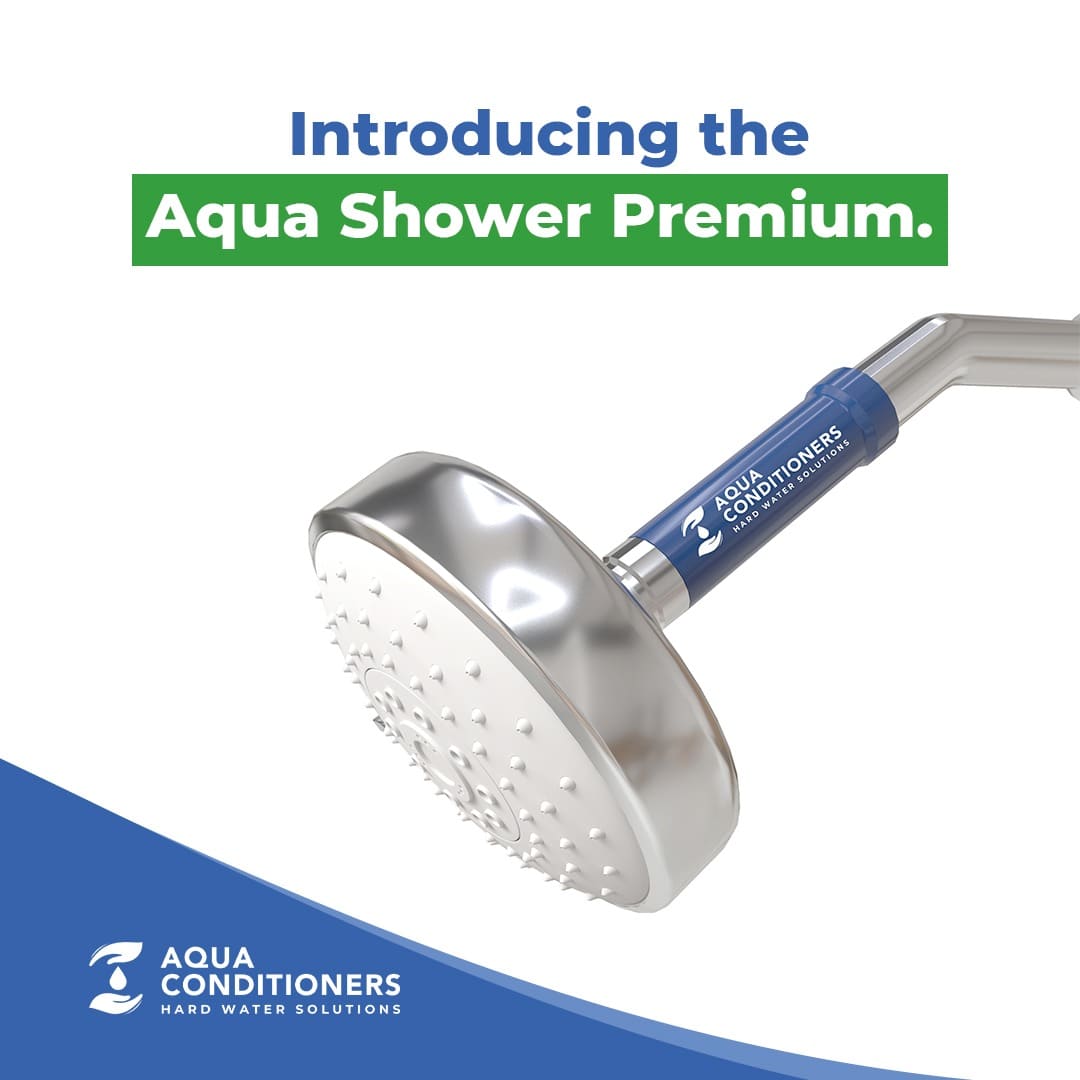

Aqua Shower Premium fitted between the shower arm and the shower head on a tiled bathroom wall

If you're looking for a no-maintenance hard water system that saves you from skin and hair damage and limescale issues, Aqua Shower Premium is just what you need.

Try risk-free for 30 days

Don't see results? Get a refund. No questions asked.

Plumber-fitted · 30 minutes

Aqua Bathroom Series & Aqua Home Series

The Aqua Bathroom Series (ABS) and Aqua Home Series (AHS) systems are easy to fix with any trusted plumber's help. You can do the installation within 30 minutes by following this simple 3-step process and the matching installation guide.

Things you need to install

Make sure you have the parts and equipment needed for the job. Your plumber will find all of it at a standard hardware store.

Necessary parts

Aqua Bathroom Series or Aqua Home Series product
Disc Filter (only for Aqua Home Series)
Elbow
Ball Valve
Female Threaded Adapter (FTA)
PVC Pipe
Union
Tee-Junction

Additional equipment

Teflon tape, to wrap the pipe threads and prevent leakage
PVC glue, to attach the parts together
Hacksaw blade, to cut a part of the mainline pipe

Aqua Conditioner manifold parts and equipment checklist (part 1)

Aqua Conditioner manifold parts and equipment checklist (part 2)

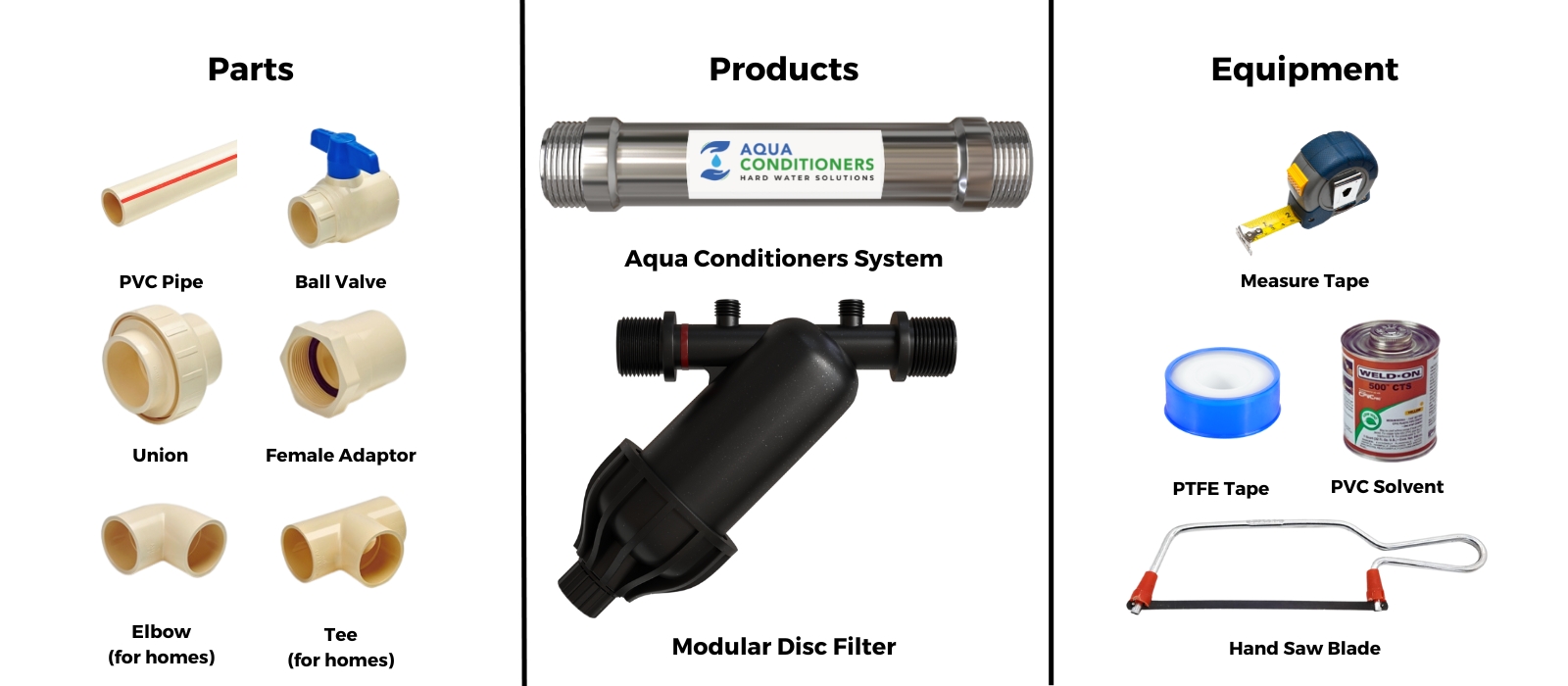

The whole kit laid out in three columns: parts (PVC pipe, ball valve, union, female adaptor, elbow, tee), products (the Aqua Conditioners system and the modular disc filter) and equipment (measure tape, PTFE tape, PVC solvent and a hand saw blade)

Assemble the manifold

Refer to the installation guide and assemble the manifold like a jigsaw puzzle. A few simple installation tips to follow:

A plumber tipping yellow PVC solvent from its tin onto the end of a white PVC pipe

Use just the right amount of PVC solvent

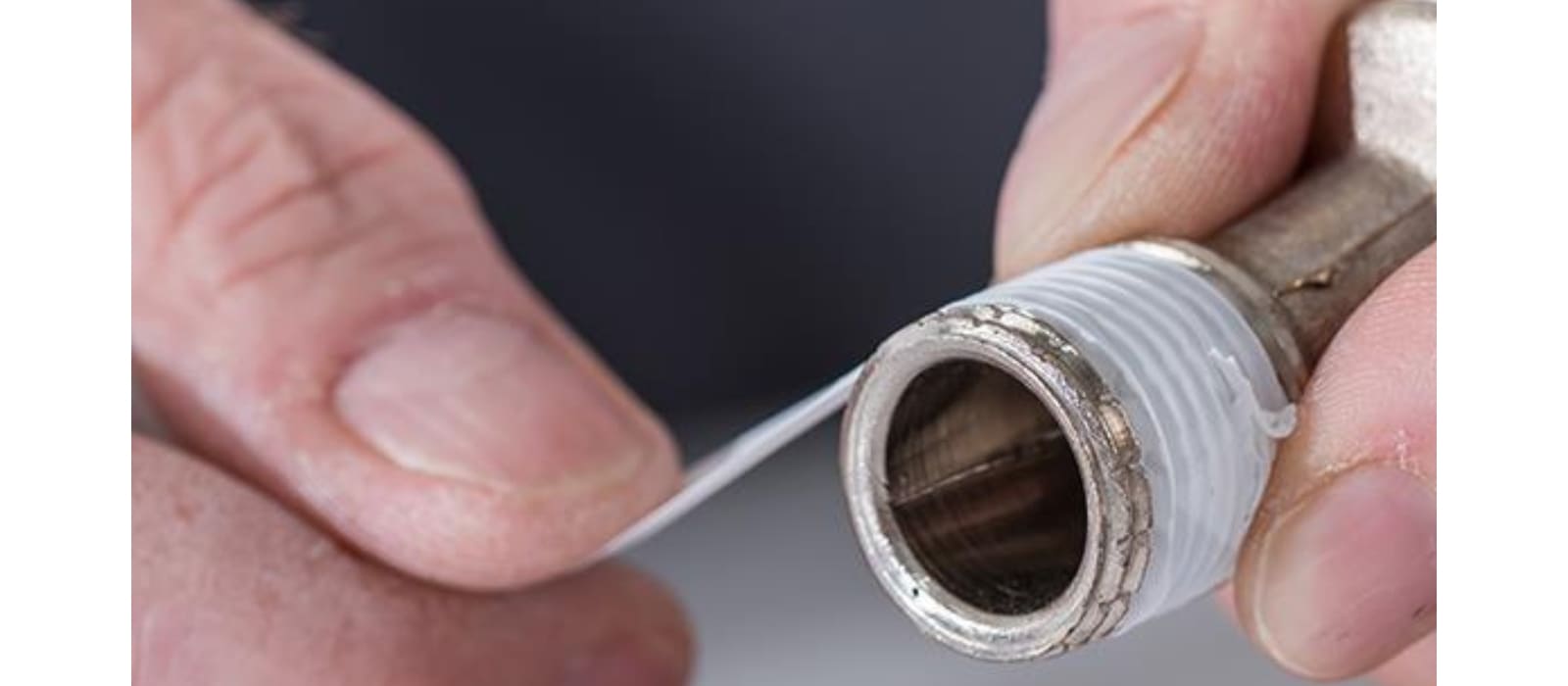

Hands winding white Teflon tape around the threads of a metal pipe fitting

Tape all threads with Teflon to avoid leakage

A wrench over-tightened on a chrome waste pipe, water spraying from the joint it has cracked

Do not overtighten any parts of the manifold

Feel free to call us in case of any issues

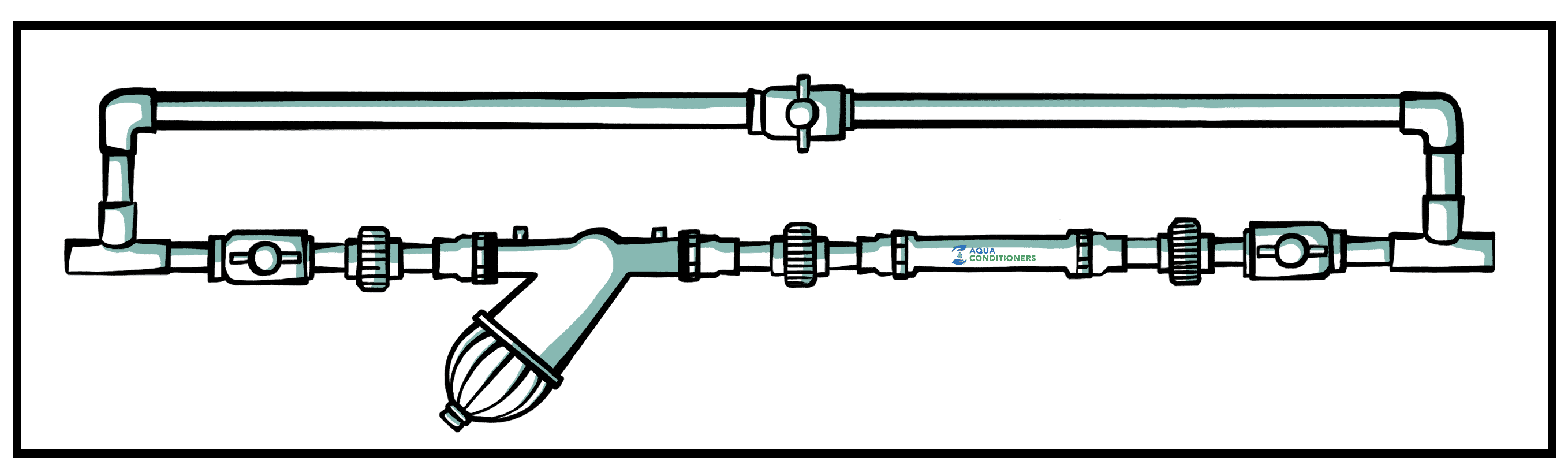

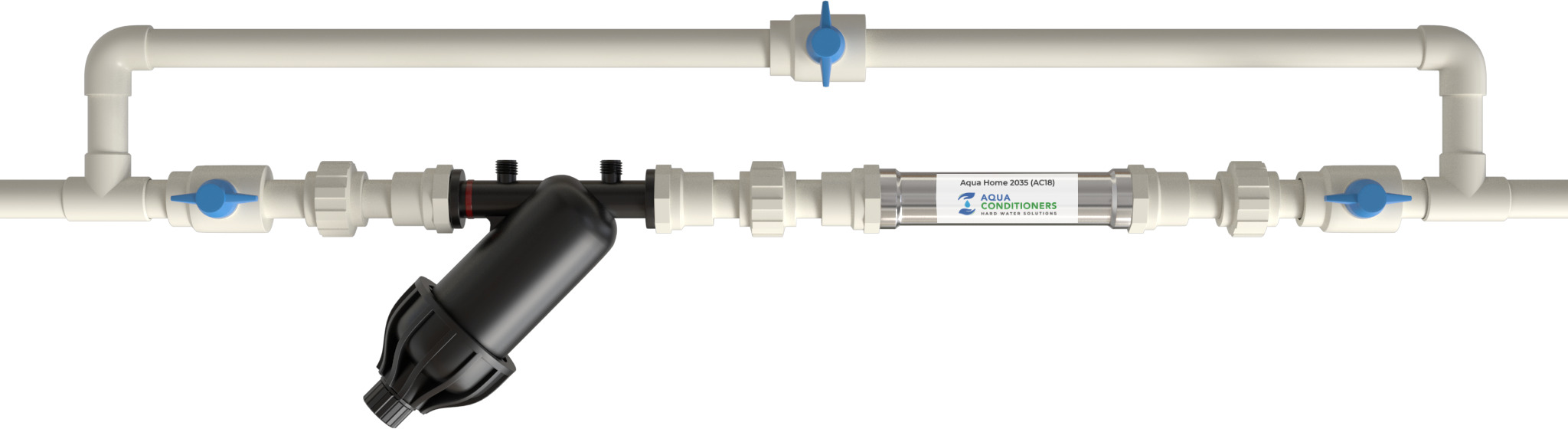

The Aqua Home Series manifold assembled on a horizontal mainline: isolation ball valves, unions, the modular disc filter and the Aqua Home 2035 (AC18) conditioner, with a bypass loop running above it

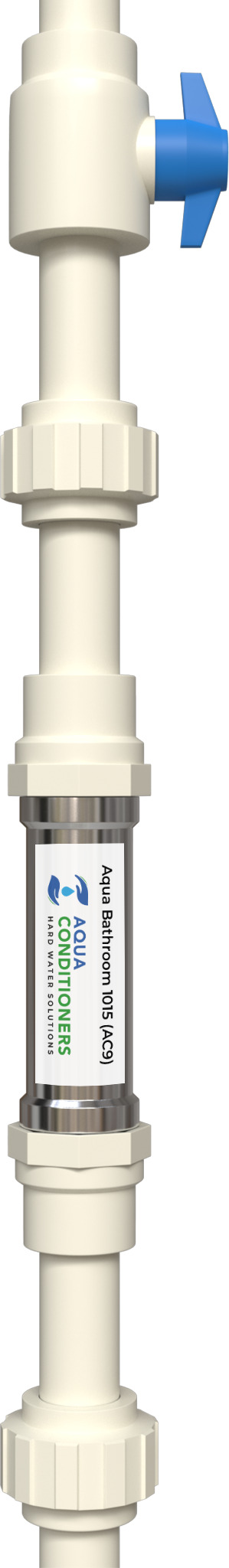

The Aqua Bathroom Series manifold assembled on a vertical bathroom mainline: a ball valve at the top, then a union either side of the Aqua Bathroom 1015 (AC9) conditioner

Measure, cut & attach to the mainline

Measure and cut part of the mainline pipe to accommodate the Aqua Conditioners system. Then attach the pipe with Aqua Conditioners to your bathroom mainline (for ABS) or your home mainline (for AHS), and you're done. Choose the layout that matches your property:

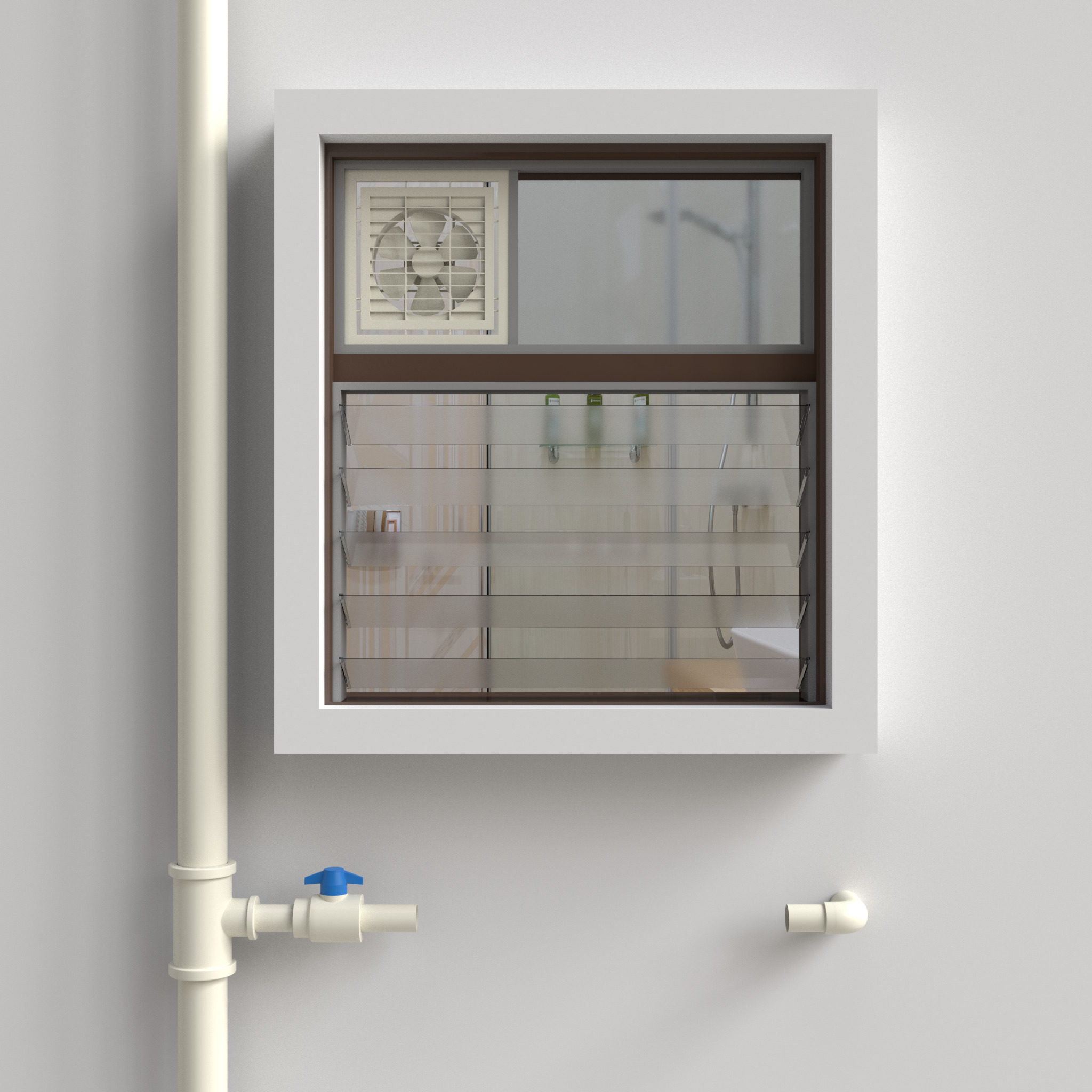

Where to cut for a flat: the bathroom mainline running down an outside wall beside the bathroom window, with its ball valve and the open pipe stub waiting for the conditioner

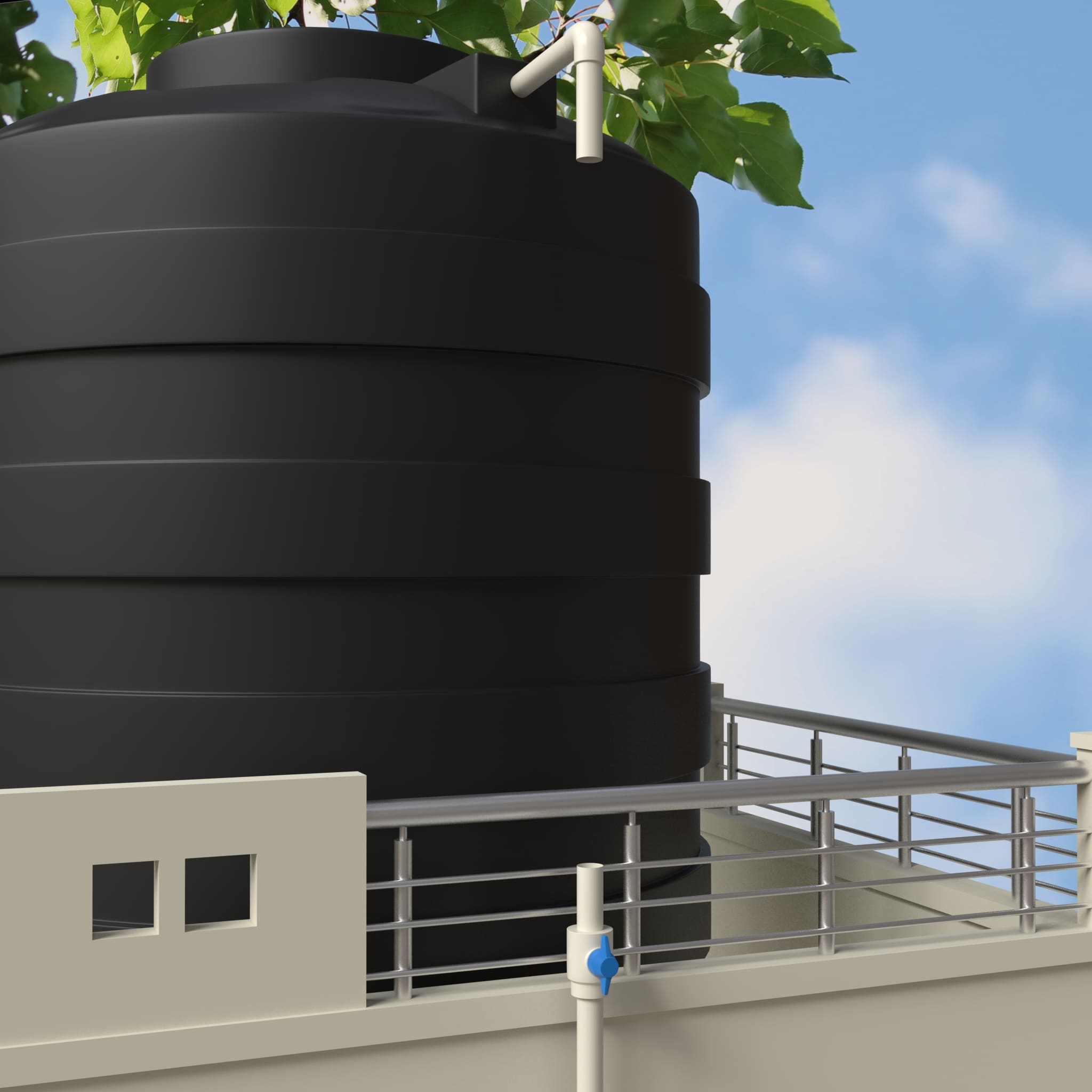

Where to cut for a house: the outlet line coming down from the rooftop water tank, with its ball valve, before the Aqua Home system goes in

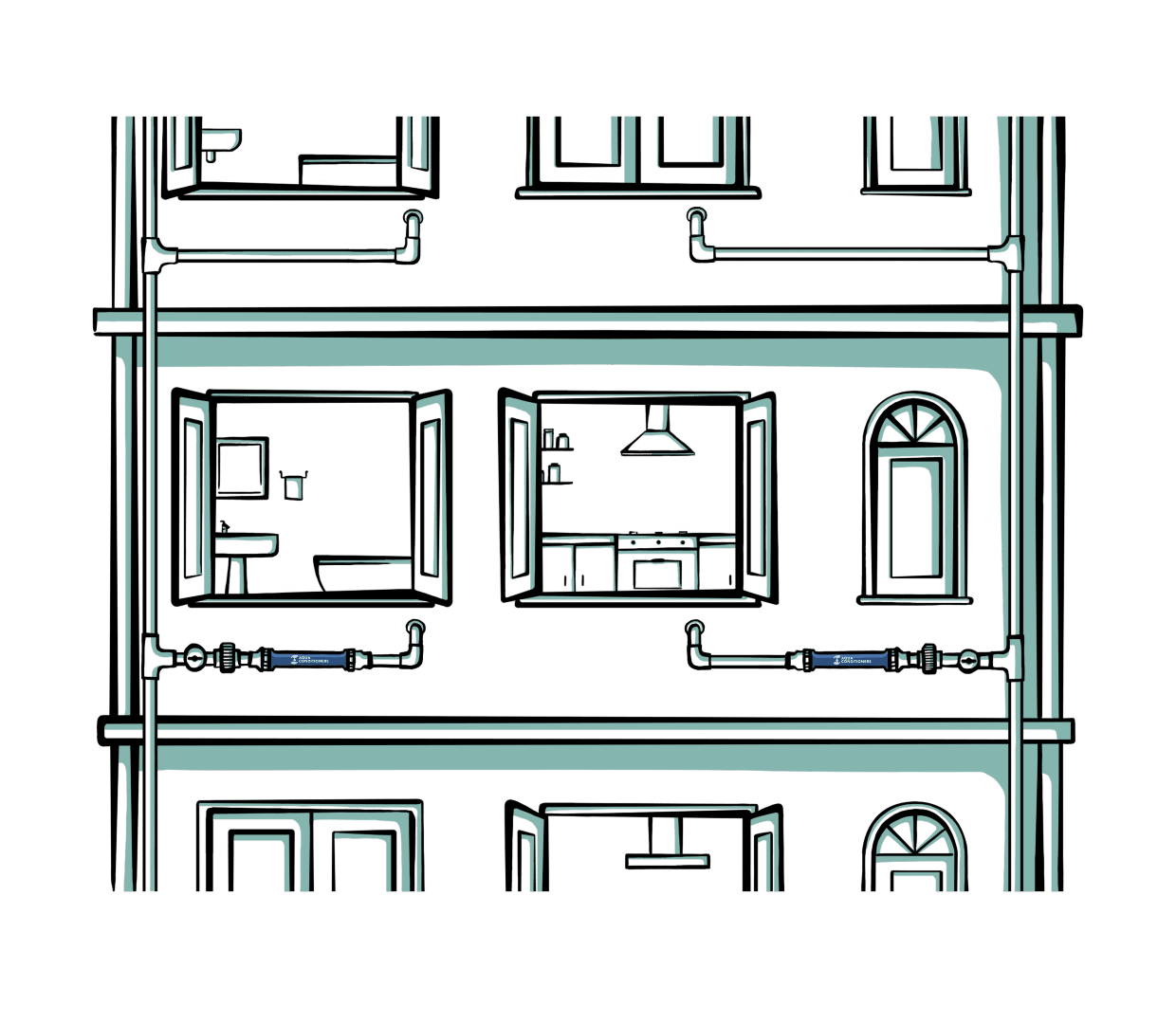

In-line manifold layout for bathrooms and kitchens in a flat

Aqua Bathroom Series

Bathrooms & flats

The ultimate cost-effective water softeners for all showers, taps, washbasins, pipes and appliances in your bathrooms. Imagine one small device conditioning all the water coming to the bathrooms in your flat or apartment. That is what the Aqua Bathroom Series is.

Bypass manifold layout for independent homes and villas

Aqua Home Series

Independent homes & villas

The single-unit solution that connects to your house's mainline and conditions all the hard water coming to your home. It protects your skin and hair from hard water, and your showers, pipes, floors and appliances from limescale deposition.

Once the Aqua Conditioners system is fixed to the mainline, all the hard water passing through it will be neutralised, leading to softer water and protection from hard water damage. Get your hands on Aqua Conditioners for 30 days and witness the change.

Try now risk-free

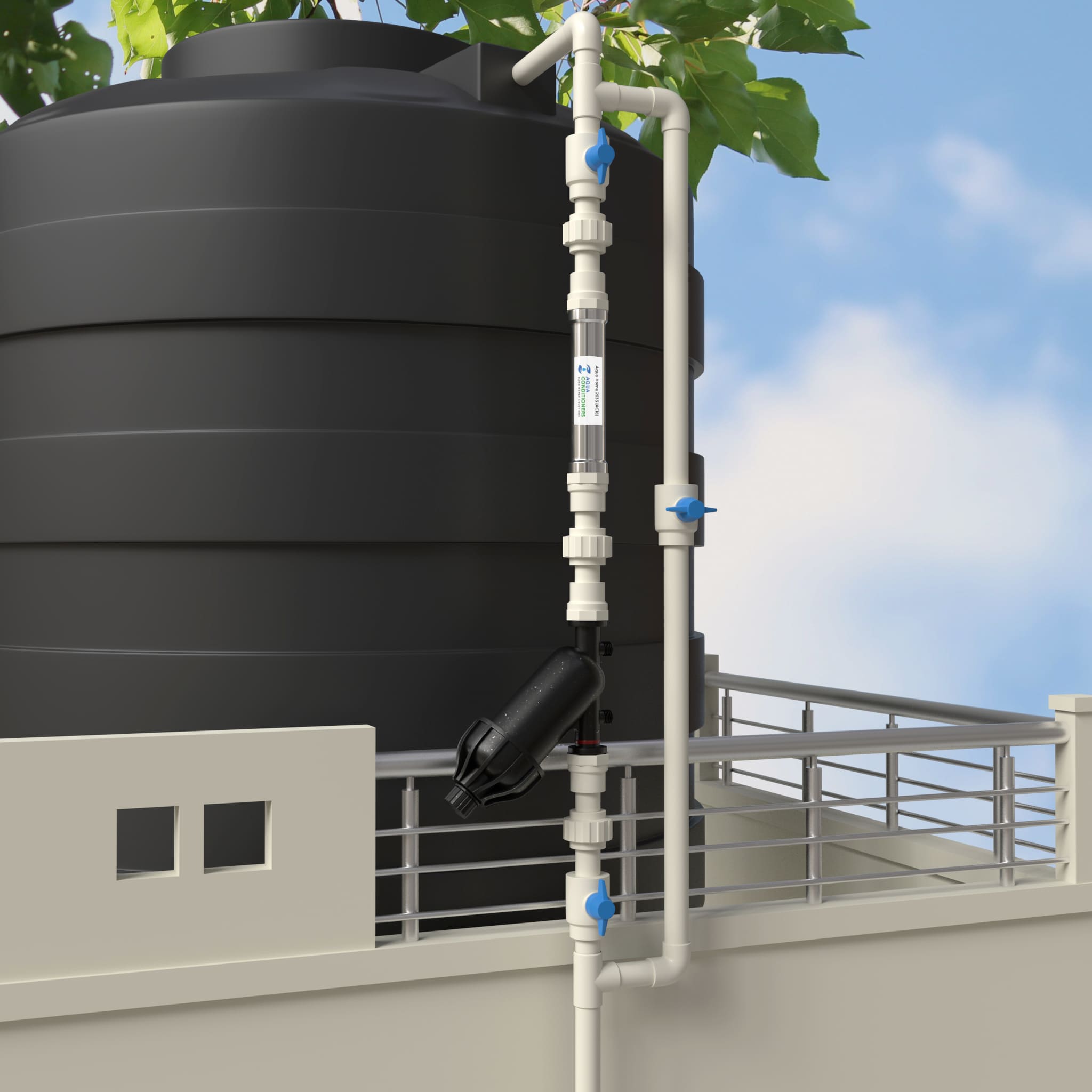

The finished job on a rooftop: the Aqua Home 2035 (AC18) conditioner and modular disc filter fitted into the tank outlet line, with a bypass and shut-off valves either side

Installation guides

If you have purchased an Aqua Bathroom Series or Aqua Home Series system, this is the guide for you. Request the step-by-step guide for your setup and we will send it across, plus connect you with a local plumber if you need one.

Bathroom installation guideFor the Aqua Bathroom Series, bathrooms & kitchens → Home installation guideFor the Aqua Home Series, independent homes & villas →

Need help with finding trusted plumbers? We got you.

We strive to give our customers the simplest experience with everything, especially installation. If you don't know any trusted plumbers in your city, worry not. We can guide you to connect with experienced technicians at Urban Company to do the job.

Install the Urban Company app.
Select "Plumbers" and then choose "Water Filter".
For Aqua Shower Premium, choose "Shower Filter".
For Aqua Bathroom & Aqua Home Series, choose "Mainline Filter".

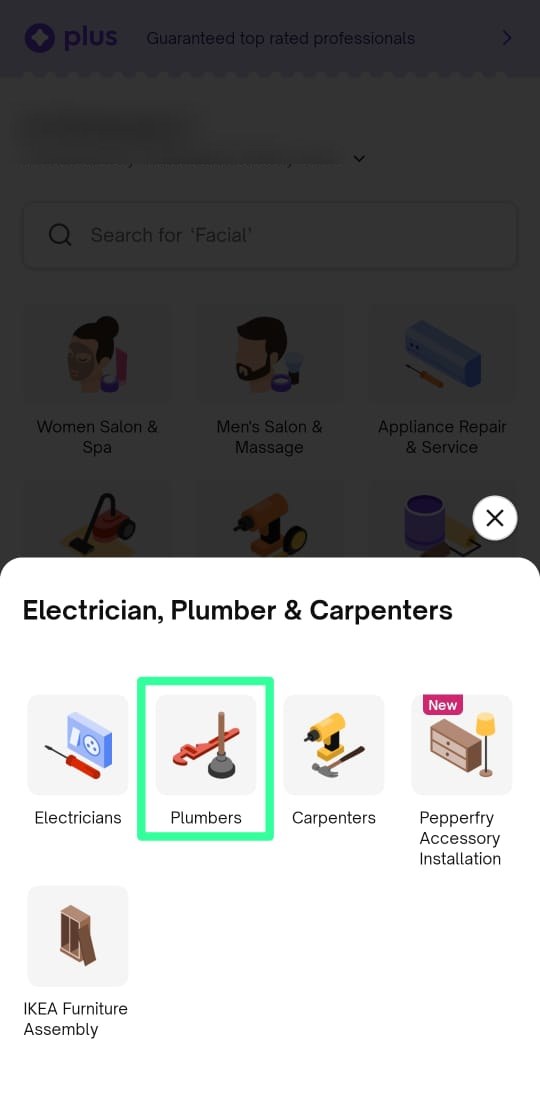

Urban Company app home screen with the Electrician, Plumber and Carpenters sheet open and the Plumbers tile ringed in green

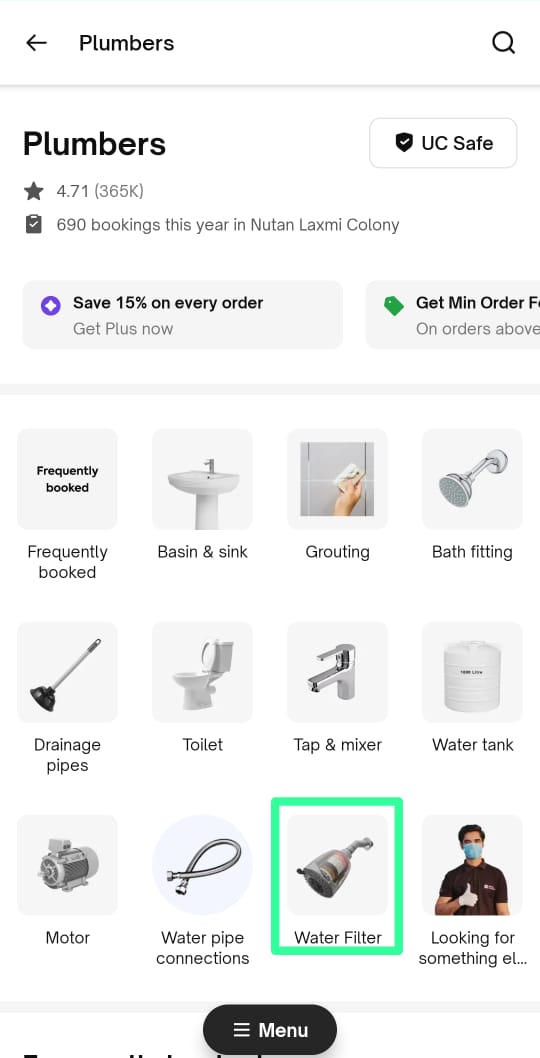

The Plumbers service page in the Urban Company app, with the Water Filter tile ringed in green

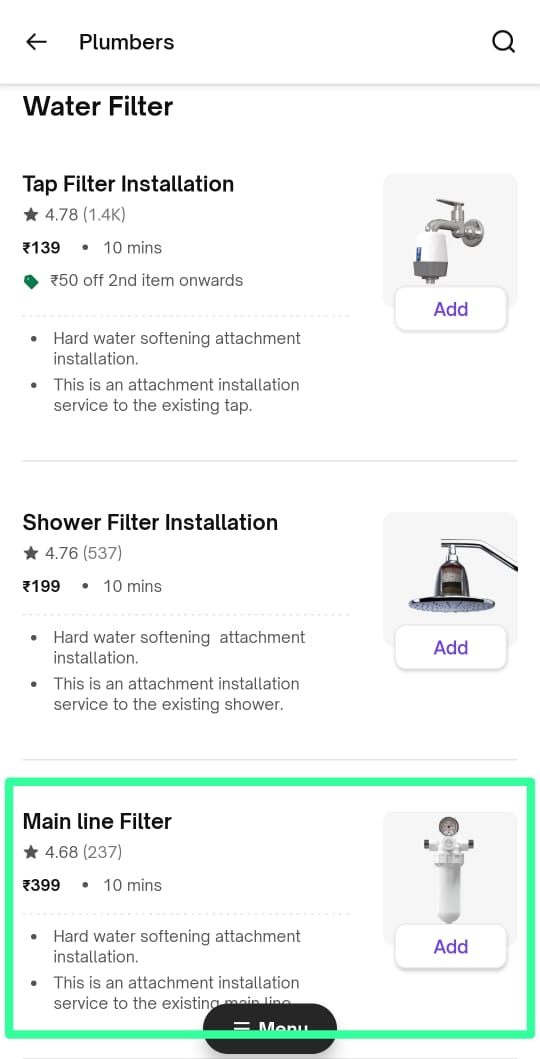

The Water Filter service list with Main line Filter ringed in green, the booking to choose for the Aqua Bathroom and Aqua Home Series

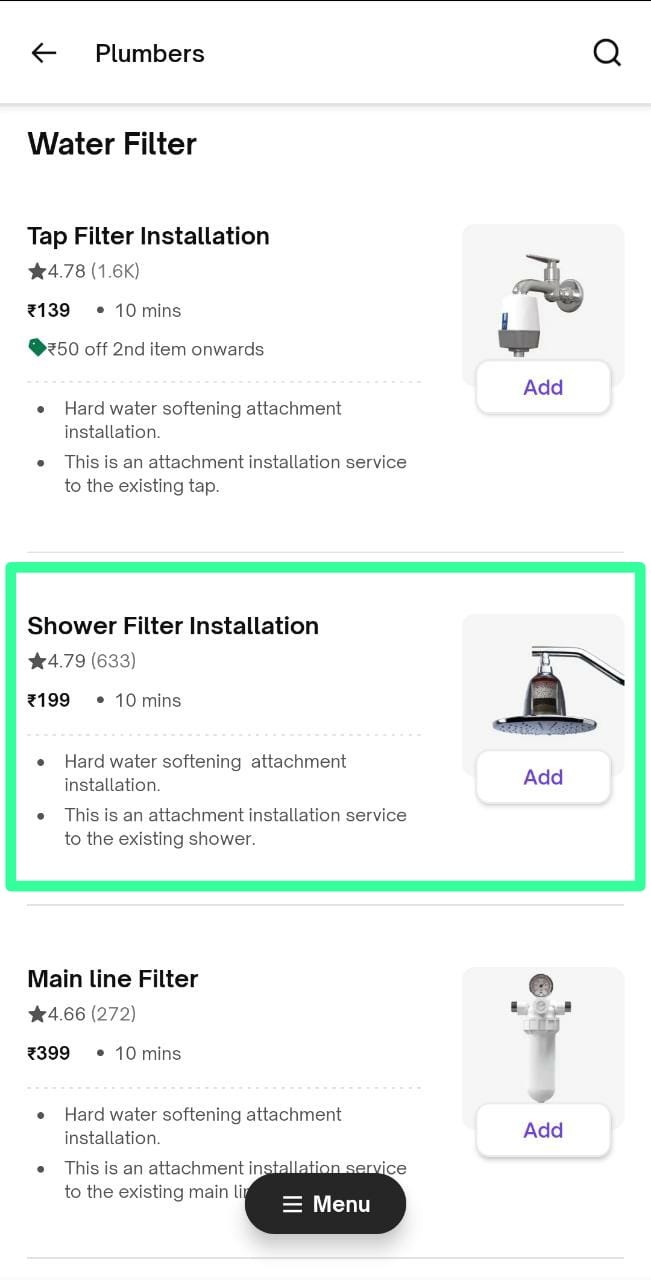

The Water Filter service list with Shower Filter Installation ringed in green, the booking to choose for Aqua Shower Premium

Once the plumber reaches, all you need to do is show a picture of the assembly and the installation guide, and they will get it fixed in no time. We also have installation partners in Mumbai, Pune, Delhi, Bangalore, Chennai and Hyderabad.

MumbaiPuneDelhiBangaloreChennaiHyderabad

Have any more doubts about installation, or would like to find out which Aqua Conditioners system will be perfect for you? Our expert team is just one call away.

Talk to our experts

Frequently asked questions

After installing the system, can I start using it immediately?+

Of course! Our systems can be installed in your bathroom mainline or home within 30 minutes. Once that is done, you can start enjoying the goodness of soft water.

Can I install Aqua Conditioners with the help of local plumbers?+

Absolutely! Aqua Conditioners are simple, fix-and-use systems that are easy to install and use. Any trusted plumber can do it with the help of our installation guides and process. If your plumber is facing any issues with installation, our team will be right there on call to guide you through it.

I don't know any local plumbers. What can I do?+

No worries. Our team can guide you to connect with experienced technicians at Urban Company and they can get the job done in no time. All you need to do is download the Urban Company app and book a plumbing service.

Where can I find the installation guides?+

You can find the installation guides linked earlier on this page, one for the Aqua Bathroom Series and one for the Aqua Home Series. Please feel free to reach out if you have any doubts.

How can I clean or maintain the system after installation?+

That's the best thing about Aqua Conditioners systems. They require zero maintenance. Once you install it in your shower, bathroom or home mainline, it doesn't need to be removed, replaced or periodically maintained.

How do I find out which Aqua Conditioners product will work for me?+

All Aqua Conditioners systems help you tackle hard water issues like skin and hair damage and limescale formation in floors, showers, taps and appliances. If you're facing difficulties choosing the right product for your residential setup, talk to us and our team will be happy to help you figure it out.

Is there a trial period to test out the product?+

Yes! We know how scary it can be to invest in a product without finding out what it can do for you. That is why we offer a 30-day risk-free trial for all of our products. Try Aqua Conditioners and experience the change for yourself. Did not see results? Send the product back and get your refund, no questions asked.
